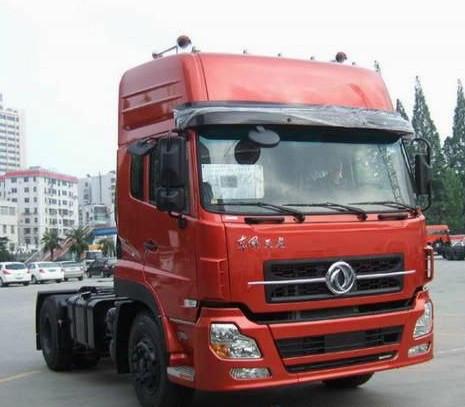

Red 4X2 Tractor Head Truck Horsepower DFL4180A5 With EURO V Emission Standard

Product Categories

Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.

Contact Now

Name: Red 4X2 Tractor Head Truck Horsepower DFL4180A5 With EURO V Emission Standard
Brand: Dongfeng
Price: 1 USD

Add to Cart

Drive mode	4×2
Engine	Model	Cummins C260 20
	Type	6-cylinder in line, turbocharging, air cooling, inter cooling, electrical control diesel engine
	Max. power(Kw/rpm)	191/2200
	Max. torque(N.m/rpm)	1125/1400
	Cylinder bore ×Stroke(mm)	114×135
	Displacement(ml)	8300
	Type of fuel	Diesel
	Compression ratio	18:01
	No. of valves	2
Cab	D310-L1	Single berth, lengthen
Cab	Capacity	3 persons
Gearbox	Type	Fast RT-11509C
	Max. torque(N.m)	1490
	Gear ratio	12.42 8.62 6.08 4.53 3.36 2.47 1.81 1.35 1.00
Clutch	Φ430mm	push-type diaphragm spring clutch
Frame Height×Width× Thickness(mm)	300×90×(8+6)
Frame Height×Width× Thickness(mm)	Frame width 940 (front ), Frame width 810 ( rear )
No. of spring leaves	8/11+3
Tyre	Size	11.00R20
Air conditioner	A/C
Dimensions	Overall dimension (mm)	5990 ×2490×3700
	Wheel base (mm)	3500
	Front/Rear tread(mm)	1986/1860
	App./Dep. angel (°)	20/40
Performance	Max. speed(Km/h)	90
	Max. gradeability(%)	30
	Min. turning diameter(m)	15
	Fuel consumption(L/100Km)	35
Mass	Curb weight(Kg)	7100
	G.V.W (Kg)	18000
	Trailer G.V.W(Kg)	34500
