Dongfeng Wrecker Truck 6*4 lifting capacity 55 ton

Product Categories

Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.

Contact Now

Name: Dongfeng Wrecker Truck 64 lifting capacity 55 ton
Brand: Dongfeng
Price: 76000 USD

Add to Cart

Dongfeng Wrecker Truck

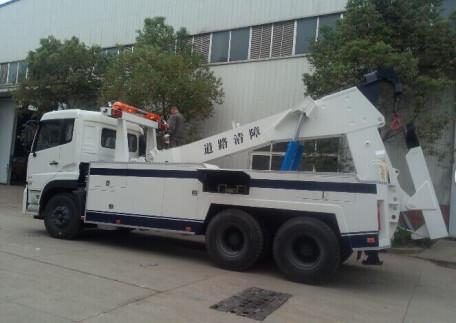

Dongfeng Wrecker Truck 6*4 lifting capacity 55 ton

Truck	Drive mode	6×4
	Chassis	DFL1311
	Engine	Model	Cummins C245 33
		Type	136/2500
		Power/Displacement(Kw/ml)	180KW/8300
		Type of fuel	Diesel
		Oil Consumption(km/L)	22.4
	Tyre	Size	11.00R20
	Gear Box	Mechanical 6 speed gear box
	Steering	Power assist steering
	Air conditioner	A/C
	Dimensions	Overall dimension (mm)	9600×2500×3150
		Wheel base (mm)	4350+1300
		Front/Rear tread(mm)	1986/1860
	Performance	Max. speed(Km/h)	90
		App./Dep. angel (°)	20/15
		Max. gradability (%)	30
		Min.turning diameter(m)	18
		Min.ground clearance(mm)	240
	Mass	Payload (Kg)	22000
		Curb weight(Kg)	19305
		G.V.W (Kg)	35000
		Axle Loading Weight(Kg)	7000/18000
Special Device	Lifting Structure	Max lifting capacity(kg)(Choosing)	16000
		Max lifting high(mm)(Choosing)	9800
		Lift-hoist telescope	3000
		Winch rating pulling capacity(kg)	5000 *2
		Length of steel(m)	45
	Hoisting Structure	Max under-hoistuseful length(mm)	2800
		Rating under-hoisting capacity(kg)	4990
		Fully extended max under-hoisting	3850
		Rating under-pulling capacity(kg)	25000
	Other Configuration	1. Lifting Capacity: 55000kg. Suspension (mm) : 0 and wheelbase (mm) : 2340239 4350 + 1350, 4350 + 1300 one-to-one correspondence; Double winding (20 t) with the 3.1 M long (arm), hydraulic leg.
