Home > Special Purpose Trucks >

Dongfeng water tanker truck/sprikler truck 5cbm to 40 cbm

Product Categories

Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.

Contact Now

Name: Dongfeng water tanker trucksprikler truck 5cbm to 40 cbm
Brand: Dongfeng
Price: 27000 USD

Add to Cart

Dongfeng Water Taker Truck

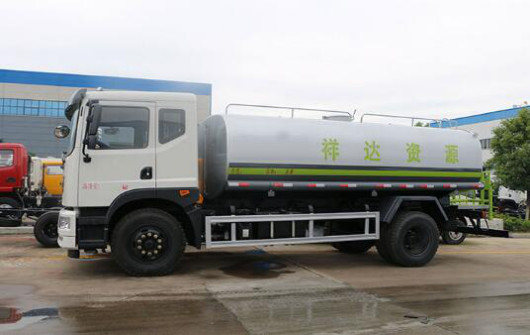

Dongfeng water tanker truck/sprikler truck 5cbm to 40 cbm

Drive Mode	4×2
Chassis	EQ1141KJ2-N93C-001-000J
Engine	Model	Cummins B210 33
	Type	straight in line, turbocharging, inter cooling, mechanical fuel injection pump, built-in EGR
	Max. power(Kw/rpm)	140/2500
	Max. torque(N.m/rpm)	6700/1300-1500
	Bore /Stroke(mm)	102×120
	Displacement(ml)	5900
	Type of fuel	Diesel
	Compression ratio	(17.3±0.5):1
Gearbox	Model	DF6S900(7.966)
Tyre	Size	10.00-20 (Bias tire)
Clutch	Φ395mm	diaphragm spring clutch
No of Spring leaves	8/10+8
Axle	Front axle(kg)	5000
Axle	Rear axle(kg)	10000
Frame Cross-section	Height×Width× Thickness(mm)	250×80×(7+4) mm(null)
Dimensions	Overall dimension (mm)	8375×2462×2710
	Wheel base (mm)	5000
	Front/Rear tread(mm)	1940/1860
	App./Dep. Angle(°)	25/14
	Min.Ground clearance (mm)	248
Performance	Max. speed(km/h)	90
	Max.gradeability (％)	30
	Min.turning radius (m)	18
Mass	Curb weight(kg)	5150
	Rated weight(kg)	9850
	G.V.W (kg)	14900
Special function	Outer dimession(mm)	6300×2275×1500
	Effective volume(m³)	12
	Density (kg/m³)	700
	Material of tank	carbon steel
	Transportation category	all kinds of liquids
	Each of Sprinkle pediment, side spray, platforms, gun, gravity valve, fire fighting fittings,two water tube (3m),one shower.
