    YHZS50 JS1000 Concrete Batching Plant Mobile Type With 50 M³/H Capacity

    Ask Lasest Price
    Brand Name : TARZAN
    Model Number : YHZS50
    Certification : ISO, CCC
    Price : $52000-$65000/unit
    Supply Ability : 300 units per month
    Delivery Time : 15 days after receipt down payment
    • Product Details
    • Company Profile

    YHZS50 JS1000 Concrete Batching Plant Mobile Type With 50 M³/H Capacity

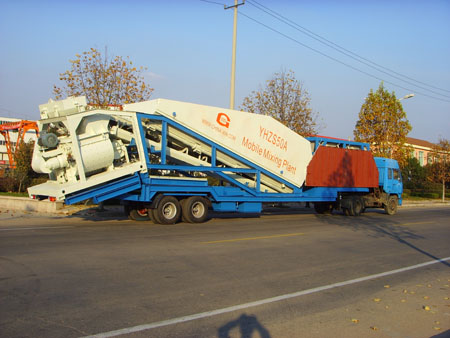

    YHZS50 Mobile Concrete Batching Plant with 50m3/h capacity


    3.General Technical Parameter
    ModelYHZ50
    Productivity50 m³/h
    Twin Shaft MixerJS1000
    Mixer Volume1 m³
    Mixer Power30kw
    Max. Aggregate Size(broken stone/pebble)60/80mm
    Loading Type of Aggregate to the MixerConveyor Belt
    Aggregate Storage Hopper5m³ × 2
    Aggregate Weighing4000kg±2%
    Cement Weighing500kg±1%
    Water Weighing250kg±1%
    Additive Weighing30kg±1%
    Control ModeFull-automatic
    Discharge Height3800mm
    Total Power70kw
    Total Weight19000kg
    Site Size (L X W X H) (at work)18850 mm × 4150 mm × 8079mm
    Cement ScrewLSY219
    Cement siloBolted Type: 100T

    4.Components list


    1JS1000 Concrete Mixer1 Pc
    2PLD1600-2 Concrete Batching Machine1 Pc
    3Water, Cement and Additive Weighing System3 Pcs
    4Aggregate Supplying System1 Pc
    5Air SystemAir Compressor 3kw1 Pc
    6Dragged system1 Pc
    7Control Room1 Pc
    8One Unit of Spare parts1 Pc
    9One set of Tools1 Pc
    Optional Parts
    Cement silo 50t Dismantle screw parts or Welded steel plate1 Set
    Butterfly ValveØ 300mm1 Set
    Level Indicator1 Set
    Pad1 Set
    5.Configuration List & Description
    1.0Twin shaft Mixer JS10001 Pc
    1.1Main Speed Reducer1 Pc
    1.2Main motor1 Pc
    1.3Oil supply system( Manual)1 Pc
    1.4Pneumatic discharge system1 Set
    1.5Legs and ladder1 Pc
    1.6Walking platform and railing1 Set
    1.7Frame1 Set
    2.0Aggregate Supplying System1 Set
    2.1Mixing Part Platform1 Set
    2.2Large big belt conveyor1 Set
    2.3Electrical drum1 Set
    2.4Heavy vertical tensioning device1 Set
    2.5Sweeper1 Set
    2.6Large angle belt conveyor, interior girth1 Set
    3.0Aggregate Batching SystemPLD1600-21 Set
    3.1Belt Width 8001 Pc
    3.2Motor 7.5kw1.6m/s1 Pc
    3.3Measuring Hopper 2500L1 Pc
    3.4Storage hopper 4*5m31 Pc
    3.5Discharge Gate2 Pcs
    3.6Vibrator 0.37kw2 Pc
    3.7Cylinder 4V210-82 Pcs
    3.8Sensor 1000kg2 Sets
    4.0Water SystemMeasuring Hopper 250kg1 Pc
    4.1Sensor300kg2 Sets
    4.2Submersible pump1 Pc
    4.3Manual butterfly valve DN50-1251 Set
    5.0Cement And Fly Ash Measuring Hopper 500kg1 Pc
    5.1Sensor 500kg3 Pcs
    5.2Solenoid valve 4V210-81 Pc
    5.3Vibrator1 Pc
    5.4Pneumatic butterfly valve1 Pc
    6.0AdditiveMeasuring Hopper25kg1 set
    6.1Sensor 50kg1 pcs
    6.2Pneumatic butterfly valve Dg501 pc
    6.3Solenoid valve 4V210-81 Pc
    7.0Air SystemAir Compressor 5.5kw1 Set
    7.1Pneumatic components1 Set
    7.2Electrical Component1 Set
    7.3φ12PU Pipe several meters1 Set
    8.0Control System1 Pc
    8.1Control Computer1 Pc
    8.2Control Platform1 Pc
    8.3Control Software1 Pc
    8.4Electrical Component1 Pc
    8.5Room Structure1 Pc
    8.6Control Room1 Pc
    9.0Dragged system1 Pc
    9.1Steering gear1 Pc
    9.2Trailer1 Pc
    9.3Rear axle and shock absorption1 Pc
    9.4Braking systems, the brake turn indicators1 Pc
    6.Spare Parts List
    1Middle blade of mixer2 Pc
    2Scaleboard for mixer drum1 Pc
    3Control system for water supply2 Pcs
    4AC 220 relay1 Pc
    5Oil sealing for mixer shaft end1 Pc
    6DC24V2 Pcs
    7Oil lubricator1 set
