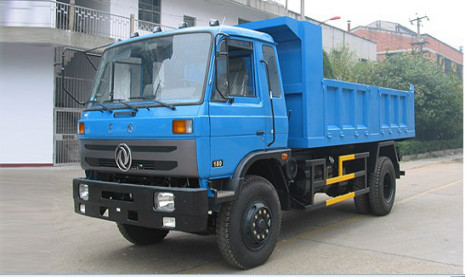

Dongfeng Dump Truck 4*2 Cummins engine

Product Categories

Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.

Contact Now

Add to Cart

Drive mode	4×2
Engine	Model	Cummins B190 20
	Type	6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
	Max. power(Kw/rpm)	140/2500
	Max. torque(N.m/rpm)	670/1300-1500
	Displacement(ml)	5900
	Emission	National III
	Type OF Fuel	Diesel
	Compression ratio	(17.3±0.5):1
Cab	CBP12-G	1 berth
Cab	Capacity	3 persons
Gearbox	Type	Fast 8JS118
	Max. torque(N.m)	1180
	Gear ratio	8 forward &1reverse 11.40 7.94 5.63 4.06 2.81 1.96 1.39 1.00/11.35
Clutch	Φ395mm	Diaphragm Spring Clutch
Frame Height×Width× Thickness(mm)	300×90×(8+6)
Frame Height×Width× Thickness(mm)	Frame width 940 (front ) , Frame width 810 ( rear )
No of Spring leaves	8/10+7
Tyre	Size	10.00-20, 10.00R20
Air conditioner	No
Dimensions	Overall dimension (mm)	6800×2462×2690
	Inner Dimension (mm)	4800×2300×900
	Wheel base (mm)	4200
	Front/Rear tread(mm)	1940/1860
	Appr./Depa. angel (°)	25/28
Performance	Max. speed(km/h)	85
	Max. gradeability(%)	25
	Min. turning diameter(m)	16
Mass	Payload (kg)	13,000
	Curb weight(kg)	6,700
	G.V.W (kg)	19,700
