Brand Name : | DONGFENG |
Model Number : | DFD3120G |
Price : | FOB Shanghai: USD29,999.00~ 39,999/unit |
Delivery Time : | 20 work days |

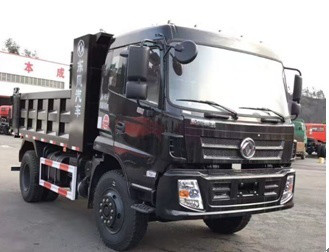

DONGFENG 245hp Tipper Truck
Advantages:
1, Good appearance, confortable cabin with 3 seats and double
sleeper.
2, RHD & LHD are available (We can make not only LHD but also RHD)
3, Good Performance (We adopt Cummins engine which with high
durability and good performance even in rough roads)
Specification:
Drive mode | 4×2 | |
Engine | Model | Cummins ISDE245-40 |
Type | In-Line Water Cooled. 6 Cylinder Turb-intercooled diesel Engine | |
Max. power(Kw/rpm) | 180/2500 | |
Max. torque(N.m/rpm) | 950/1400 | |
Displacement(ml) | 6700 | |
Compression ratio | 17.5:1 | |
Emisstion Standard | EURO IV | |
Type OF Fuel | Diesel | |
Fuel Tanker capacity | 220L | |
Steering | DONGFENG , LHD | |
Cab | D916 Model | 3 Seats and 1 bed Canbin with A/C and AM/FM USB player, flat head,double doors,tippable canbin. |
Gearbox | Model | Fast 9JS119A |
Type | Mechanical manual 8 speed Forward 8 & Reverse 1 | |
Gear ratio | (FI)11.40 (F2)7.94 (F3)5.63 (F4)4.06 (F5)2.81 (F6)1.96 (F7)1.39
(F8)1.00 (R1)11.35 | |
Transmission | Manual | |
Clutch | GF430mm, Single sheet, dry type, film spring | |
Min.ground Clearance | ≥324mm | |
Max.gradeabitiy | 33% | |
Tyre | Size | 11.00R20 |
No. | 6+1 | |
Axles | Front Axle | Dongfeng Dana 6500kgs |
Rear Axle | Dongfeng Dana 13000kgs | |
Braking System | ABS | |
Air conditioner | Yes | |
Dimensions | Overall dimension (mm) | 7050×2500×2850 |
Inner dimension (mm) | 4750×2300×700 | |
Wheel base (mm) | 3950mm | |
Front/Rear tread(mm) | 1940/1860 | |
Overhang(F/R)(mm) | 1245/1855 | |
Performance | Max. speed(km/h) | 85 |
Mass | Payload(kg) | 13,000 |
Curb weight (kg) | 8,500 | |
G.V.W (kg) | 21,500 |
Photos:
![]() |
