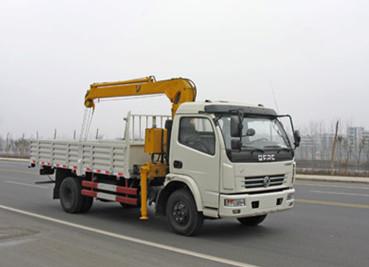

3 ton truck mounted crane-straight arm crane

Product Categories

Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.

Contact Now

Name: 3 ton truck mounted cranestraight arm crane
Brand: Dongfeng
Price: 1 USD

Add to Cart

Model		E31-534
Wheelbase(mm)		3300
Engine model		Chaochai CY4102-C3D
Engine power(Kw)		80
Engine displacement(ml)		3756
Gearbox		A100
Frame(mm)		188
Front/Rear axle(T)		2.5/3.5
Tyre		7.00-16
Payload(Kg)		4500
Curb weight(Kg)		2800
G.V.W.(Kg)		7300
Overall dimensions(mm)		5995×2090×2260
Cab		one row
Power supply(V)		24
Braking system		air brake without spring
Steering system		mechanical
A/C		optional
Aluminum alloy rim		optional
Central lock		optional
Crane	3.2T	Max. Lifting Capacity (Kg)	3200
		Max.Lifting Moment(T·M)	6.7
		Recommended Power (kw)	10
		Max.Lifting range(m)	5.2
		Max.Lifting height(m)	6.8
		Max.Outrigger span (m)	3.3
		Max.Hydraulic system flow (L/min)	25
		Rated pressure of hydraulic system (MPa)	20
		Fule tank Capacity (L)	60
		Rotation angle (°)	370
		Crane weight(kg)	1160
		Installation space (mm)	850
