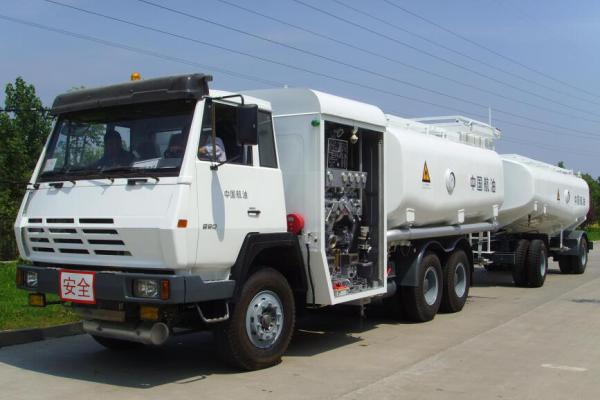

45m³ Aircraft Refueling Truck with Full Trailer

Ask Lasest Price
Brand Name :	DONGFENG
Model Number :	C5600YST
Price :	FOB SHANGHAI: USD362,820.00
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1000
Delivery Time :	20 DAYS

Add to Cart

Product Details
Company Profile

45m³ Aircraft Refueling Truck with Full Trailer

Features:
1. The aircraft refueling truck with full trailer is equipped with stopping brake interlock, overtaking and signal display, inlet oil pump, flow meter, filter separator, pressure control valve and refueling hose;
2. The reel is coiled automatically by two hydraulic control devices;
3. Double-wedge-shaped tank with variable cross-section facilitates deposition of impurities;
4. It is manufactured with high-quality aluminum-magnesium alloy plate, TIG welding and X-ray detection;
5. A refueling platform is installed on top of tank
	Product model		C5600YST
Completed Vehicle	Overall dimensions (L×W×H, mm)		18956×3000×3225
	Rated payload (KG)		40900
	Curb weight (KG)		19600
	Maximum total mass (KG)		60500
	Material of oil tank		Aluminum magnesium alloy
	Total nominal volume of oil tank		49000
	Accuracy of flow meter		±0.2%
	Minimum turning diameter (m)		22
	Maximum speed (Km/h)		50
	Maximum flow of oil pumping of reel hose (L/min)		250 for single tube; 420 for double-tube
	Maximum flow of oil pumping of platform hose (L/min)		300 for single tube; 420 for double-tube
Main Parts	Chassis model		SINOTRUK STEYR 6×4 Chassis
	Engine power (horsepower)		290
	Overall dimensions (L×W×H, mm)		9920×3000×3225
	Rated payload (KG)		18320
	Curb weight (KG)		14040
	Maximum total mass (KG)		32500
	Tank capacity	Geometric volume (L):		23000
		Rated volume (L):		21500
	Maximum flow of refueling (L/min)		1200 for single tube; 2400 for double-tube
	Maximum flow of bottom loading (L/min)		1500
Trailer	Overall dimensions (L×W×H, mm)		9167×3000×3170
	Rated payload (KG)		22440
	Curb weight (KG)		5560
	Maximum total mass (KG)		28000
	Tank capacity	Geometric volume (L):		28870
		Rated volume (L):		27500
	Maximum flow of refueling (L/min)		1200 for single tube; 2400 for double-tube
	Maximum flow of bottom loading (L/min)		1500
	Length of 2.5'' reel hose for underwing refueling (m)		30
	Length of 2.5'' platform hose for underwing refueling (m)		3.5
	Fuel filtering performance index of filter separator		Meet the requirements of API/IP 1581 5th
	Control of refueling pressure		Online + end
	Braking interlock		YES
	Deadman control		Pneumatic/electrical control
	Production license of civil aviation		YES
	High-low level control		YES
